PUNTO CENTRO GIRATORIO CONO MORSE 6
RC-MT6-JHDC
Nuevo producto

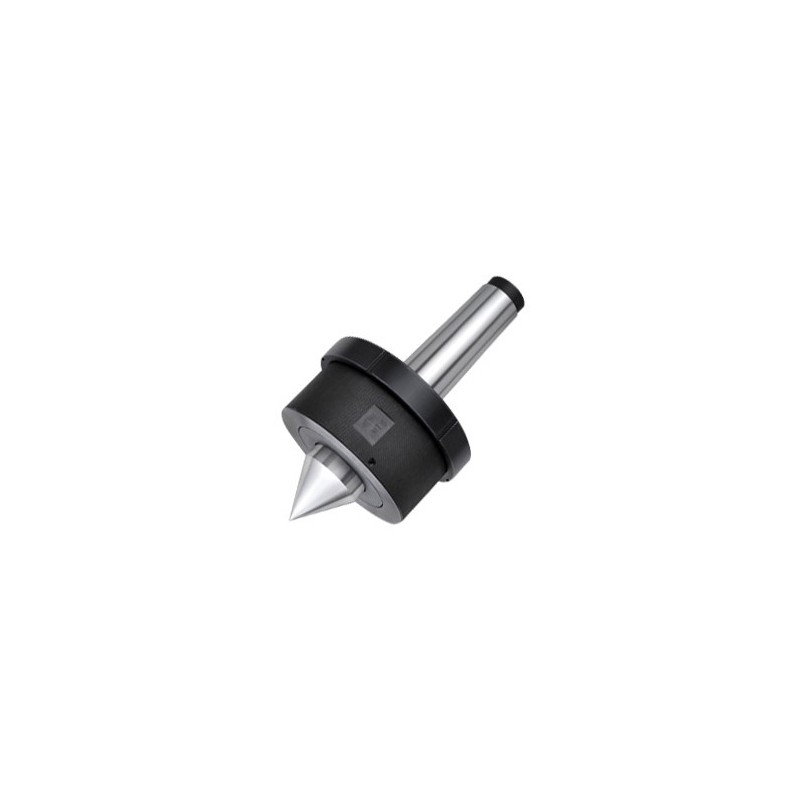

PUNTO CENTRO GIRATORIO CONO MORSE 6 JUMBO TURNMAX
Más
| Part No. | Model | Shank Taper | Ød mm | ØD mm | ØD1 mm | L1 mm | L2 mm | L mm | Max. Job Wt. Kg. | Conc. Error mm |
|---|---|---|---|---|---|---|---|---|---|---|
| RC MT5 JHDC | Jumbo Heavy Duty Compact | MT-5 | 55.0 | 125.0 | 44.399 | 63.0 | 92.5 | 129.5 | 2500 | 0.015 |
| RC MT6 JHDC | Jumbo Heavy Duty Compact * | MT-6 | 74.0 | 180.0 | 63.348 | 82.0 | 112.0 | 182.0 | 5000 | 0.015 |
| RC MT7 JHDC | Jumbo Heavy Duty Compact * | MT-7 | 74.0 | 180.0 | 83.058 | 82.0 | 114.0 | 254.0 | 6500 | 0.015 |
